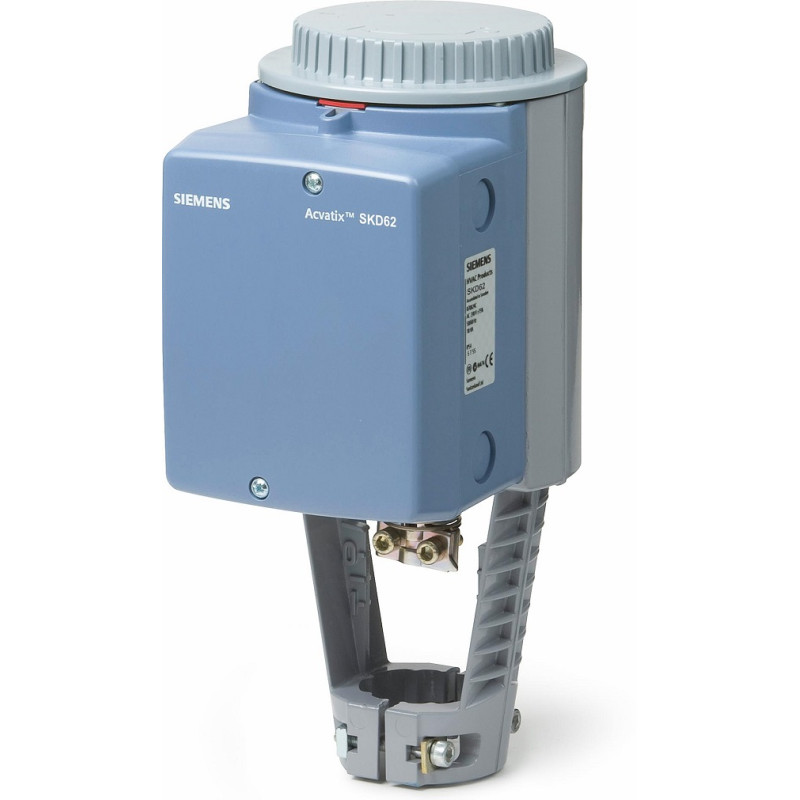

SIEMENS SKD62 LINEER VALVE AKTUATOR
€0.00
Tax included
1000 N, 20 mm, AC 24 V, DC 0...10/V 4...20 mA
With fail-safe function, Overload-proof through travel-dependent, electronic switching off in end position. With die-cast aluminium housing and yoke for valves with 20 mm stroke. Optional function with one auxiliary switch. With manual control.
Technical Specifications
Operating voltage
AC 24 V
Positioning signal
DC 0...10 V, DC 4...20 mA, 0...1000 Ohm
Power consumption
14 VA
Positioning force
1000 N
Positioning time
Open:30 s, Close:15 s
Stroke
20 mm
Spring return function :
Yes (15 s)
Position feedback
DC 0…10 V, 4…20 mA
Degree of protection
IP54
Medium temperature
-25…150 °C
Ambient temperature, operation
-15…50 °C
Mounting position
Upright to horizontal
Dimensions (W x H x D)
127 x 300 x 169 mm
SKD62
